Product Dimensions 11"h x 34.38"w x 19.25"d

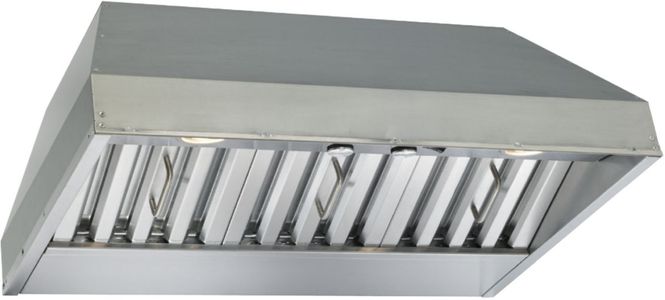

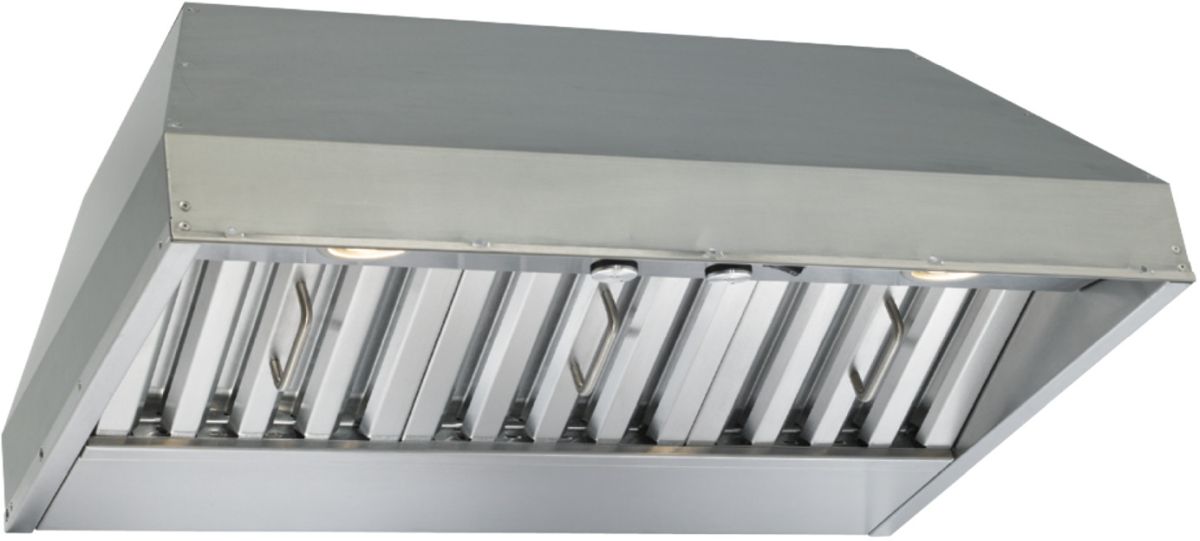

All-in-one design includes liner, blower, filtration, controls, lighting, and damper for easy installation into custom canopy hoods. Intended for all residential applications, including commercial-style cooking surfacesRead More
$1,220.00
Save $750.00
Quiet, normal speed operation: CFM: 290 Powerful, centrifugal blower with high-efficiency motor
Cabinet mount - custom applications
Finish: 430 Stainless Steel #4 Brushed
Width: 34-3/8”
Depth: 19-1/4”
8” round duct connector with backdraft damper
Two-setting cooktop lighting (Uses two 50W, GU10 halogen lamps. Bulbs included.)
Easily accessible, dishwasher safe stainless steel baffle filters with handles
Infinite speed rotary blower control with on-off rocker switch
Heat Sentry™ - automatically turns blower to high speed when excess cooking heat is detected
General Specs | |
| Width (in.) | 34.38 |
| Height (in.) | 11 |
| Duct Size (in.) | 8 |
| Depth (in.) | 19.25 |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 35 |
| Maximum CFM | 290 |
| Sones Rating | 11.5 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Dimensions | |
| Max Height Above Cooktop: | 30 |
| Min Height Above Cooktop: | 24 |
General Features | |
| Filter Type: | Stainless Steel Baffle Filter |
Other | |
| Number of Lights: | 2 |
| Settings: | 2 Lighting Levels |
| Air Mover(s) Speed: | Variable |
| Number of Air Movers: | 1 |
| Sones (Noise Level) Rating: | 11.5 |
Styling | |
| Design: | Coperto |
